ERYING Gaming PC Motherboard with Onboard CPU Core i7 Kit SRLD1 i7 12700H i7-12700H(NO ES) 14Cores 20Threads Mainboard Please notice: 1.
Our 12th generation motherboard is with a Wifi and Bluetooth Slot, we will send a WIFI shield together out.
You need buy a Wifi card or module by yourself then can use it. 2.
Now the IHS Cover is a little bit too thick for 12th generation motherboard, which will effect the CPU processor’s heat dissipation and working performance.
Under this situation, when testing FPU with aidi64 software, There will be frequency reduction.
So, when receive the motherboard, please only use it by default and NOT modify our bios.
(We already re-design the IHS cover for 12th generation motherboard, but it need about 1-2months then can apply to our motherboard) So, Anyone who mind this problem, please don’t buy it first.
We don’t want any negative comments in the following.
Those customers who place order will accept this situation by default, and the dispute intervention is also effective.
Dear buyers, This listing is for a desktop motherboard with embedded high performance CPU on it.
The onboard CPU is 12th Core SRLD1 i7 12700H i7-12700H official formal version(NO ES).
(For the working performance, you can refer to i9-11980HK i9-11950H) The CPU on the board is soldered (similar to that on laptop).
You don’t need to buy an extra CPU for this motherboard.
Processor Graphics: Intel Iris Xe Graphics (Intel Iris Xe can be identified if the RAM is in dual-channel mode) Thanks for purchasing Erying motherboard which provides excellent performance and quality assurance.
Package Contents: 1* Erying M-ATX Gaming Motherboard 1*SATA Cable 1*User’s Manual 1*I/O Panel shield Caution:The above package content is for reference only, subject to change without prior notice, please refer to the actual.
Erying company reserves the finally explanatory rights.

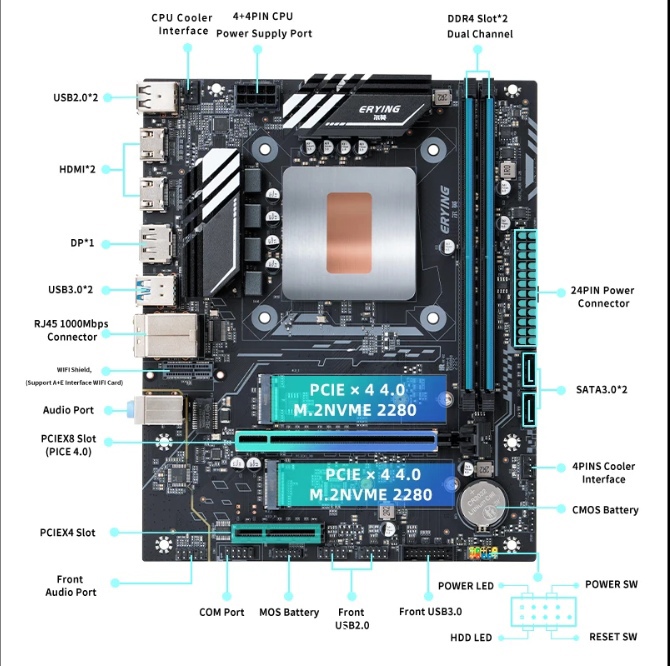

Motherboard Features Erying M-ATX Gaming Motherboard based on Intel 12th Core Alder Lake-H CPU,support DDR4-2133 /2400/2666 /3200(OC+)Mhz memory.
The motherboard support 1*PCI Express 4.0×8 slot and 1*PCI Express 3.0X4 slot, 2*DDR4 memory slots、2*SATA3.0 ports、2*M.2 SSD slots(NVMe Only)、1*WIFI slot.
It’s a cost-effective motherboard with good extensibility and strong extension performance.
